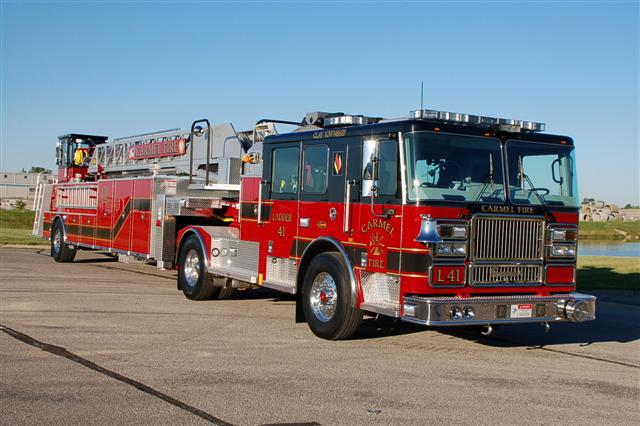

Tractor Drawn Ladders

Features

• Marauder II Custom Chassis and Stainless Steel Cab for Unmatched Durability
• 3CR12 Stainless Steel Body Construction
  • Up to 605 cu. ft. of Body Storage
• 100' - 250 or 500 lbs. Tip Load
• Full Extension Up to 5º Below Grade
• Two Outrigger Design
  • A-Frame Jacks or H-Frame Available, Tip Load Dependent
  • Outrigger Spread is 12' 6" w/A-Frame or 16' 6" w/H-Frame
  • Narrow Stacked Design Uses Less Space
  • Single Lever Controls for Rapid Set-Up
  • Independent Left & Right Side Operation
• Level on Slopes up to 5º
• I-Beam Steel Ladder Construction
• Greaseless Ladder
  • Replaceable, Teflon Impregnated Wear Strips
• Nested Ladder Design
  • Overlapped Bearing Surface Nest Together
  • Creates wider Rungways for Easier Climbing
• Pre-Piped Waterway w/ Pinable Option
  • Remote Control Waterway Option
• Fly Section Options
  • 4.5' Removable Tip
  • Creeper Controls
  • 120 Volt Options
  •  Breathing Air
•  Horizontal or Vertical Ground Ladder Storage
  • Optional Enclosed Side Panels Protect Ladders
• Tiller Cab
  • 18" Dia. Steering Wheel
  • 36" Wide by 54" High
  • Tubular Steel Framework
  • Aluminum Treadplate floor
  • Sliding Side Doors w/ Extra Large Upper Optional side Wall Windows
  • Diesel Fueled Heater
  • Optional HVAC 14,000 btu
  • Optional Bubble-Door Windows
  • Optional Insulation Package
